Daftar Barang Lab

Spesifikasi: Rigol DG4102 Maximum output frequency: 200MHz, 160MHz, 100MHz, 60MHz 500MSa/s sample rate, 14 bit vertical resolution Dual channel outputs with identical performance 2ppm high-frequency stability -115dBc/Hz low phase noise Versatile analog and digital modulation functions 150 built-in waveforms 7digits/s, 200MHz built-in Counter Harmonic generator that can generate up to 16th order of harmonic (Std.) Powerful waveform editing PC software Connectivity: USB Host & Device, LAN 7 inch LCD display (800 × 480) Sumber Link: Dipa ITB Nama MK Praktikum: Rangkaian Elektrik 1, Rangkaian Elektrik 2, Elektronika, Sistem Digital Modul: Ada

Spesifikasi: RIGOL DG1022 The Rigol DG1022 is a 2 channel Function / Arbitrary Waveform Generator to create high quality signals up to 20 MHz (Sine). Beside the two analog outputs, the device includes a 200 MHz frequency counter, an USB-Host- and an USB-device interface. The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface. -Advanced Direct Digital Synthesis(DDS) technology, 2 output channels, built-in counter, 20MHz maximum output frequency (5 MHz max square wave) -Monochrome LCD display -3.5 standard waveforms and DC outputs. 48 preset arbitrary waveforms, 10 groups of 4kpts arbitrary waveforms. -Multi modulation functions: AM, FM, PM, FSK, and linear/logarithm Sweep and Pulse train waveform outputs -Connectivity: USB Host, USB Device. Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Rangkaian Elektrik 1, Rangkaian Elektrik 2, Elektronika, Sistem Digital Modul: Ada

Spesifikasi: Rigol DM3058 The Model DM3058 DMM gives reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3058 is a great bench tool for basic, reliable measurements regardless of your application or need. A high quality digital tabletop multimeter of the DM3050 series with a sampling rate of max. 120 Sa/s. These Rigol multimeters have a very sophisticated and easy to use interface and provides plenty functions for all measurement tasks. The use of the menu navigation is very intuitional and the device will provide precise results in its many application areas. With the help of a computer you can perform long running monitoring tasks too. The LC-Display is with its 256x64 pixels easy to read and provides a very good overview over all features. The display has a resolution of 5½ digits (max. count 240.000). Real 5 ½ digits readings resolution Up to 123 rdgs/s of measurement speed True-RMS AC Voltage Current measuring Quickly Save or Recall the 10 groups of Preset Configuration Preset 10 groups of Standard Sensor Configuration, built-in Thermocouple compensate in Cold Terminal Clone or backup all the configurations within instrument into other DM3058 via U-disc The first 5 ½ digit digital multimeter passing LXI Criterion in industry, which can achieve system integration easily With easy, convenient and flexible random sensor measurement control software: UltraSensor Standard configuration interface: USB Device, USB Host Sumber Link: Dipa ITB Nama MK Praktikum: Rangkaian Elektrik 1, Rangkaian Elektrik 2, Elektronika Modul: Ada

Spesifikasi: Rigol DM3068 digital multimeter designed with 6 1/2 digits readings resolution especially fitting to the needs of high-precision, multifunction and automatic measurement. It adopts many of today's new technologies to achieve high performance, abundant features in the same class. It's designed to aim at the requirements of the largest DMM market from the research, education, industrial electronics, consumer electronics and automotive industries with its innovative technology, industry-leading specifications, powerful measurement functions, and broad analysis capabilities. The DM3068 can support 13 kinds of measurement functions: DC Voltage, AC Voltage, DC current, AC current, 2-wire Resistance, 4-wire Resistance, CAP, Diode, Connectivity, Frequency, Period, Any sensor and Temperature. Standard interface: USB Device, USB Host, LAN, RS-232 and GPIB. Real 6 1/2 digits resolution Easy to measure AC signal with double display "Any sensor" function Support multiple temperature sensors Standard Capacitor measurement function Trendline display Histogram display Statistic function Sumber Link: Dipa ITB Nama MK Praktikum: Rangkaian Elektrik 1, Rangkaian Elektrik 2, Elektronika Modul: Ada

Spesifikasi: Fluke 374 True RMS AC/DC Clamp Meter part of the Fluke Connect family of wireless test tools, delivers the standard features you need for everyday troubleshooting. Measure AC and DC current to 600 A with the fixed jaw clamp or add an optional iFlex® flexible current probe to measure all the way to 2500 A. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access tightly packed wires. You can also use the 374 FC to measure AC and DC voltage to 1000 V and resistance to 6000 Ω. Compatible with optional TPAK magnetic hanging strap Comes with soft carrying case, batteries, and three-year warranty Measures capacitance to 1000 µF Features CAT III 1000 V, CAT IV 600 V safety rating Provides True-RMS voltage and current measurements to accurately measure non-linear signals Includes Min/Max/Avg and inrush recording to capture variations automatically Runs on two AA alkaline batteries Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Sistem Tenaga Elektrik, Tugas Akhir Modul: Ada

Spesifikasi: Rigol DS4012 2-channel Digital Oscilloscope from Rigol is a high performance test tool that competes head-to-head with other more expensive brands, but at a better price point. It incorporates Rigol's advanced UltraVision technology for a very fast refresh rate of 110,000 wfms/s. Sampling at up to 4GSa/s, the DS4012 offers an amazing 140Mpts of buffer memory – one of the largest available anywhere! That means you can drill down deep into a long data stream for those elusive glitches! The Rigol Technologies DS4012 is ideal for a wide variety of applications, including communications, defense, aerospace, industrial electronics, R&D and education. 100 MHz bandwidth 4 GSa/s sample rate 2 Analog channels 140 million memory points, standard 110,000 Waveforms per second Original Ultravision technology Hardware allows for real-time, continuous waveform recording and waveform analysis Sumber Link: Dipa ITB Nama MK Praktikum: Rangkaian Elektrik 1, Rangkaian Elektrik 2, Elektronika, Sistem Digital Modul: Ada

Spesifikasi: RIGOL DS1102 The DS1102E Oscilloscope is an economical 100MHz unit that is in use around the world. With advanced features such as 1Mpt memory depth, 1GSa/s sampling, FFT capability, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity, the DS1102E also includes standard features such as USB Device for waveform storage, and USB Host and RS-232 connectivity and Pass/Fail output for remote controlled automated test setups. PictBridge compatibility facilitates printing out waveforms stored on the 5.6” TFT display. 1 GSa/s maximum real-time sample rate 1Mpts long Memory Depth. ( Compare this to like scopes with just kb memory vs Mb! ) 100 MHz Bandwidth USB host support on the front of the DS1102E Ultra compact design. Fits on your desktop better Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate Adjustable bigger sensitivity: Effectively filter noise from bigger signal and avoid false trigger Cursor measurements: Manual, Track and Auto Measure modes 10 waveforms, 10 setups, BMP and CSV storage. Math functions:+, -, x, FFT, Invert Special digital filter and waveform recorder Built-in hardware frequency counter Standard interfaces include USB Device, USB Host, RS-232 Abundant trigger types: edge, pulse width, slope, video, alternate trigger Direct print to PictBridge compatible printers via USB Device interface. 5.6" TFT QVGA (320X240) with 64K color LCD backlit display,Unique/vivd waveform record and replay Multi-language user interfacebuilt-in help system Unique adjustable trigger sensitivity enables to meet different demands Enable to measure 20 types of wave parameters and track measurements via cursor automatically Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Rangkaian Elektrik 1, Rangkaian Elektrik 2, Elektronika, Sistem Digital Modul: Ada

Spesifikasi: The DC and AC Power Circuits Training System combines a modular design approach with computer-based data acquisition and control to introduce students to the fundamentals of electricity, such as direct current (dc), alternating current (ac), voltage, resistance, and Ohm's Law. The training system is designed to operate at a low voltage to ensure the safety of students beginning their training in electric power technology. Voltage, Current, and Ohm's Law Equivalent Resistance Power in DC Circuits Series and Parallel Circuits The Sine Wave Phase Angle and Phase Shift Instantaneous Power and Average Power Inductive Reactance Capacitive Reactance Impedance Active and Reactive Power Apparent Power and the Power Triangle Sumber Link: Quotation PT Fisban Nama MK Praktikum: Sistem Tenaga Elektrik Modul: Ada

Spesifikasi: The Power Electronics Training System combines a modular design approach with computer-based data acquisition and control to provide unrivaled training in power electronics to students already having a sound knowledge of basic electric power technology. The system features the Four-Quadrant Dynamometer/Power Supply, Model 8960, and the Data Acquisition and Control Interface, Model 9063, two state-of-the-art USB peripherals that greatly enhance the learning experience of students. Training begins with the following four courses: • DC Power Electronics • Single-Phase AC Power Electronics • Three-Phase AC Power Electronics • Thyristor Power Electronics Sumber Link: Quotation PT Fisban Nama MK Praktikum: Sistem Tenaga Elektrik Modul: Ada

Spesifikasi: Terasic Altera DE 0 SOC DE0-Nano-SoC Development Kit presents a robust hardware design platform built around the Altera System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE0-Nano-SoC development board is equipped with high-speed DDR3 memory, analog to digital capabilities, Ethernet networking, and much more that promise many exciting applications. Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: On-Progress

Spesifikasi: Terasic Altera DE 10 The DE10-Standard Development Kit presents a robust hardware design platform built around the Intel System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE10-Standard development board includes hardware such as high-speed DDR3 memory, video and audio capabilities, Ethernet networking, and much more. Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: On-Progress

Spesifikasi: The experimental panel system is used for the coherent teaching of the principal mechanical configuration and basic operating principles of the most important AC machines in teacher-oriented lessons and lectures to conduct the experimental groups. EXPERIMENT TOPICS : -Measurement on Three Phase Induction Motor -Start & Stop control -The Working Principles Of Observe And Reverse Rotation Control Circuits Of Contactor Interconnects -Operation Of Three Phase Synchronous Generator -Operation Of Single Phase Synchronous Generator -Operation Of Three Phase Synchronous Motor And Permanent Split Capacitor Motor Sumber Link: Quotation PT Fisban Nama MK Praktikum: Sistem Tenaga Elektrik Modul: Ada

Spesifikasi: The experimental panel system is used for the coherent teaching of the principal mechanical configuration and basic operating principles of the most important DC machines in teacher-oriented lessons and lectures to conduct the experimental groups. EXPERIMENT TOPICS : -DC Compound Motor -DC Separately Excited Motor -DC Permanent Magnet Motor -DC Shunt Motor Sumber Link: Quotation PT Fisban Nama MK Praktikum: Sistem Tenaga Elektrik Modul: Ada

Spesifikasi: Using the Power Transmission Line trainer set it will be possible to assemble an absolute power transmission system. From a transformer with tapping switch to the power circuit breaker and 415V power transmission line model, including line termination with surge impedance. Various experiments can be are carried out on this power transmission system, no load operation with natural load, asymmetrical and asymmetrical short circuit, parallel and series compensation of the transmission line as well as neutral-point connection. EXPERIMENT TOPICS : · Symmetrical load and unsymmetrical load connection · Voltage and frequency control by inverter unit · Characteristic of transformer feeder · RL circuits in transmission line · RC circuits in transmission line · RLC circuits in transmission line · Earth fault compensation and its characteristic · Excitation voltage controller with motor generator · Characteristic of generating voltage · Measuring power in each line Sumber Link: Quotation PT Fisban Nama MK Praktikum: Sistem Tenaga Elektrik Modul: Ada

Spesifikasi: UNI T UTi-160A UNI-T UTi165A Infrared Thermal Imager 160*120 IR Resolution Features: IP65 dust water proof2m drop proof-10~400 ℃,2.8 TFT screenLED flashlightCelsius degrees Fahrenheit switchingCenter mark, high low temperature capture5 palette style options Package includes: 1 x Thermal Imager1 x Engslish User Manual1 x Type-C USB Cable1 x 16GB SD Card Details Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: Tidak Ada

Spesifikasi: PC Desktop Internasional Branded Processor Onboard Intel® Core™ i7-7700 Processor (3.60 GHz, 8M Cache) up to 4.20 GHz Memori Standar 16GB DDR4 Max. Memori 64GB HDD: 2TB SSD: 32GB Tipe Grafis NVIDIA GeForce GTX 745 4 GB DDR3 Audio Integrated Optical Drive DVD±RW Konektivitas: Wifi + Bluetooth Keyboard Wireless Keyboard Ragam Input Device Wireless Mouse Sistem Operasi Microsoft Windows 10 Pro Monitor 27 inch Garansi min 1 tahun Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Sistem Tenaga Elektrik Modul: Tidak Ada

Spesifikasi: Intel Core i5-10400 (2.90 GHz; 12M Cache; up to 4.30 GHz) HP P204v 19.5-inch Monitor , HD+ (1600 x 900 @ 60 Hz) RAM 8GB (1x8GB) DDR4 2666 NECC HDD 1TB 7200RPM SATA-6G 3.5 Intel® UHD Graphics 630 USB Wired Keyboard & Mouse Wifi + Bluetooth + LAN Sumber Link: Quotation PT Jitrasindo Modul: Tidak Ada

Spesifikasi: Demonstration Board MA 2067 is an excellent demonstration and educational tool that simulates real conditions in low voltage electrical installations. The Demonstration board consists of all significant elements of electrical installations like RCDs of different types, fuses, PE equalization bars, 1-phase and 3-phase sockets, various consumers of electrical energy and various grounding systems (TT, TN, IT). The MA 2067 Demonstration Board provides simulation of different types of faults in electro installation. Complete testing and troubleshooting of the installation is possible by using suitable instruments. MA 2067 Standard set Demonstration board Jumper, 4 pcs Board support for vertical use Three phase to one phase adapter 1-phase mains cable Instruction manual Booklet with exercises Calibration certificate Sumber Link: Quotation PT Fisban Nama MK Praktikum: Sistem Tenaga Elektrik Modul: Ada

Spesifikasi: Board for NI ELVIS II is an add-on application board for the NI Engineering Laboratory Virtual Instrumentation Suite II (NI ELVIS II) or NI ELVIS II+. Developed for education, this device can help you teach introductory digital and analog communications topics in electrical and computer engineering curricula. Using the Emona DATEx Telecommunications Board for NI ELVIS II, you can offer students the opportunity to build and measure communications systems that correspond to communications system block diagrams commonly found in textbooks. Basic Analog Communications AM, FM, DSB, SSB, PM, PAM, TDM, PWM, Superheterodyne, Speech in Comms, PLL, QAM, SNR Concepts and more Digital Communications PCM, PCM-TDM, ASK, BPSK, FSK, GFSK, Eye Patterns, DPSK, QPSK, Spread Spectrum, Line Coding, Noise Generation, SNR Concepts and more LabVIEW™ APPLICATIONS Familiarity with LabVIEW™ VI’s; Controlling real telecommunications signals and experiment set-ups via the DATEx Soft Front Panel; Utilising a suite of LabVIEW™ VI’s to generate, view and record real signals; System Control & Design Skills; Integrate hardware and software signal processing; Create ‘hardware in the loop’ systems; Data acquisition of real electrical signals; Writing new LabVIEW™ applications using DATEx function block VI’s Sumber Link: Dipa ITB Nama MK Praktikum: Sistem Komunikasi Modul: Ada

Spesifikasi: Board for NI ELVIS II is an add-on application board for the NI Engineering Laboratory Virtual Instrumentation Suite II (NI ELVIS II) or NI ELVIS II+. Developed for education, this device can help you teach introductory digital and analog communications topics in electrical and computer engineering curricula. Using the Emona DATEx Telecommunications Board for NI ELVIS II, you can offer students the opportunity to build and measure communications systems that correspond to communications system block diagrams commonly found in textbooks. Basic Analog Communications AM, FM, DSB, SSB, PM, PAM, TDM, PWM, Superheterodyne, Speech in Comms, PLL, QAM, SNR Concepts and more Digital Communications PCM, PCM-TDM, ASK, BPSK, FSK, GFSK, Eye Patterns, DPSK, QPSK, Spread Spectrum, Line Coding, Noise Generation, SNR Concepts and more LabVIEW™ APPLICATIONS Familiarity with LabVIEW™ VI’s; Controlling real telecommunications signals and experiment set-ups via the DATEx Soft Front Panel; Utilising a suite of LabVIEW™ VI’s to generate, view and record real signals; System Control & Design Skills; Integrate hardware and software signal processing; Create ‘hardware in the loop’ systems; Data acquisition of real electrical signals; Writing new LabVIEW™ applications using DATEx function block VI’s Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Sistem Komunikasi Modul: Ada

Spesifikasi: QNET DC Motor can be easily attached or detached using magnets mounted on the QNET DC Motor connector. Asingle-ended rotary encoder is used to measure the angular positon of the DC motor.Main QNET DC Motor features •Compact and complete rotary servo system for NI ELVIS II(+) • 18V direct-drive brushed DC motor • Encoder mounted on DC motor • Built-in PWM amplifier • Build-in PCI connector for NI ELVIS II(+) • Inertia disk module Sumber Link: Dipa ITB Nama MK Praktikum: Sistem Kendali Modul: Ada

Spesifikasi: QNET DC Motor can be easily attached or detached using magnets mounted on the QNET DC Motor connector. Asingle-ended rotary encoder is used to measure the angular positon of the DC motor.Main QNET DC Motor features •Compact and complete rotary servo system for NI ELVIS II(+) • 18V direct-drive brushed DC motor • Encoder mounted on DC motor • Built-in PWM amplifier • Build-in PCI connector for NI ELVIS II(+) • Inertia disk module Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Sistem Kendali Modul: Ada

Spesifikasi: The ADSP-BF561 is a functional extension of the popular Blackfin Processor family and is ideally suited for a broad range of industrial, instrumentation, medical, and consumer appliance applications—allowing for scalability based upon the required data bandwidth and mix of control, plus signal processing needed in the end product. High-Level of Integration 328 KBytes of on-chip memory configured as: 32 KBytes of L1 instruction memory SRAM/Cache per core 64 KBytes of L1 data memory SRAM/Cache per core 4 KBytes of L1 scratchpad memory per core 128 KBytes of low-latency shared L2 memory 32-bit Memory Controller providing glueless connection to multiple banks of SDRAM, SRAM, Flash or ROM. Two Parallel Peripheral Interfaces Units supporting ITU-R 656 video data formats. Two dual-channel, full-duplex, synchronous serial ports supporting eight stereo I2S channels. Dual 16 Channel DMA Controllers, supporting one and two-dimension transfers. SPI-compatible Port. UART with support for IrDA®. 12 timer/counters supporting PWM, pulsewidth and event count modes. 48 Programmable Flags/General Purpose I/O. Event Handler. Dual Watchdog timers. PLL capable of 1x to 63x frequency multiplication. 256-ball Mini-BGA and 297-ball Sparse PBGA packages. Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Pengolahan Sinyal Digital Modul: Ada

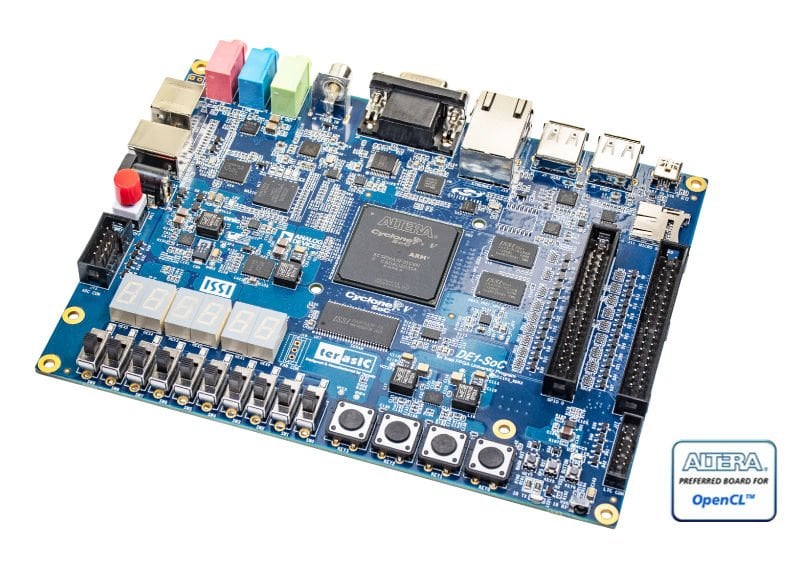

DE1 board provides users many features to enable various multimedia project development. Component selection was made according to the most popular design in volume production multimedia products. The DE1 platform allows users to quickly understand all the insight tricks to design projects for industry. Altera Cyclone II 2C20 FPGA with 20000 LEs Altera Serial Configuration deivices (EPCS4) for Cyclone II 2C20 USB Blaster built in on board for programming and user API controlling JTAG Mode and AS Mode are supported 8Mbyte (1M x 4 x 16) SDRAM 4Mbyte Flash Memory 512Kbyte(256Kx16) SRAM SD Card Socket 4 Push-button switches 10 DPDT switches 8 Green User LEDs 10 Red User LEDs 4 Seven-segment LED displays 50MHz oscillator ,24MHz oscillator ,27MHz oscillator and external clock sources 24-bit CD-Quality Audio CODEC with line-in, line-out, and microphone-in jacks VGA DAC (4-bit R-2R per channel) with VGA out connector RS-232 Transceiver and 9-pin connector PS/2 mouse/keyboard connector Two 40-pin Expansion Headers (GPIO : voltage levels: 3.3V) DE1 Lab CD-ROM which contains many examples with source code

Spesifikasi: DE1 board provides users many features to enable various multimedia project development. Component selection was made according to the most popular design in volume production multimedia products. The DE1 platform allows users to quickly understand all the insight tricks to design projects for industry. Altera Cyclone II 2C20 FPGA with 20000 LEs Altera Serial Configuration deivices (EPCS4) for Cyclone II 2C20 USB Blaster built in on board for programming and user API controlling JTAG Mode and AS Mode are supported 8Mbyte (1M x 4 x 16) SDRAM 4Mbyte Flash Memory 512Kbyte(256Kx16) SRAM SD Card Socket 4 Push-button switches 10 DPDT switches 8 Green User LEDs 10 Red User LEDs 4 Seven-segment LED displays 50MHz oscillator ,24MHz oscillator ,27MHz oscillator and external clock sources 24-bit CD-Quality Audio CODEC with line-in, line-out, and microphone-in jacks VGA DAC (4-bit R-2R per channel) with VGA out connector RS-232 Transceiver and 9-pin connector PS/2 mouse/keyboard connector Two 40-pin Expansion Headers (GPIO : voltage levels: 3.3V) DE1 Lab CD-ROM which contains many examples with source code Sumber Link: Dipa ITB Nama MK Praktikum: Sistem Digital Modul: Ada

Spesifikasi: DE1 board provides users many features to enable various multimedia project development. Component selection was made according to the most popular design in volume production multimedia products. The DE1 platform allows users to quickly understand all the insight tricks to design projects for industry. Altera Cyclone II 2C20 FPGA with 20000 LEs Altera Serial Configuration deivices (EPCS4) for Cyclone II 2C20 USB Blaster built in on board for programming and user API controlling JTAG Mode and AS Mode are supported 8Mbyte (1M x 4 x 16) SDRAM 4Mbyte Flash Memory 512Kbyte(256Kx16) SRAM SD Card Socket 4 Push-button switches 10 DPDT switches 8 Green User LEDs 10 Red User LEDs 4 Seven-segment LED displays 50MHz oscillator ,24MHz oscillator ,27MHz oscillator and external clock sources 24-bit CD-Quality Audio CODEC with line-in, line-out, and microphone-in jacks VGA DAC (4-bit R-2R per channel) with VGA out connector RS-232 Transceiver and 9-pin connector PS/2 mouse/keyboard connector Two 40-pin Expansion Headers (GPIO : voltage levels: 3.3V) DE1 Lab CD-ROM which contains many examples with source code Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Sistem Digital Modul: Ada

Spesifikasi: Pudak Power Electronic Trainer digunakan sebagai perangkat untuk pelatihan/percobaan Mengenai konsep dasar dan penerapan tentang Diode, SCR, TRIAC, DIAC dan Motor Universal. Topik mencakup: karakteristik Thyristor, Thyristor on DC circuit, karakteristik TRIAC, Respon TRIAC pada sistem lampu, Karakteristik DIAC, Pembangkit Pulse Light dengan UJT, Komutasi alami pada UJT pembangkit pulsa, kendali Fasa dengan UJT, penyearah gelombang tegangan dengan diode 1 fasa, penyearah gelombang dengan Thyristor, Pengendali tegangan AC dengan TRIAC, Pengisian Baterai, Encoder Optik sebagai Feed back, Identifikasi Character Plant, Kendali kecepatan loop terbuka, kendali loop tertutup motor AC dengan PID dan Kendali kecepatan loop terbuka, kendali loop tertutup motor DC dengan PID Sumber Link: https://e-katalog.lkpp.go.id/katalog/produk/detail/74494276?lang=id&type=general Nama MK Praktikum: Sistem Tenaga Elektrik Modul: Ada

Spesifikasi: Rigol DP832A 3 Outputs Programmable DC Power Supply 195W, 3CH(30V/3A || 30V/3A,5V/3A),10mV/10mA resolution. Ripple<350uV -3 outputs, 30V/3A || 30V/3A, 5V/3A, total power up to 195W -Low Ripple Noise 350 uVrms/2mVpp -Excellent linear regulation rate and load regulation rate -Fast transient response time: 50 us -Some channels are isolated -Standard OVP/OCP/OTP protection functions -Standard timing output -Built in V, A, W measurements and waveform display -Independent control for each channel -Support more advanced functions: timer and delay output (standard) -3.5 inch TFT Display -Various interfaces: USB Host & Device (standard) Sumber Link: Dipa ITB Nama MK Praktikum: Rangkaian Elektrik 1, Rangkaian Elektrik 2, Elektronika, Sistem Digital Modul: Ada

Spesifikasi: Rigol DP832 The Rigol DP832 is a very high quality programmable laboratory power supply with three switchable outputs (+30 V/3 A, +30 V/3 A and +5 V/3 A) and a maximum power output of 195 W. Like all Rigol devices, the power supply features a very well constructed nd easy to use interface offering comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure. The Rigol DP832 features a relative large (8.9 cm / 3.5") and easy to read TFT monochrome display. In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves. A timer control can be used to set the output signal to different values in up to 2048 steps. 3 Outputs; total power up to 195W Low Ripple Noise <350 uVrms/2mVpp Fast transient response time: <50 us Channel isolation: CH1 || CH2,CH3 OVP/OCP/OTP protection functions Built in V, A, W measurements and waveform display Support for output Delay, Analysis, Monitor, and Preset functions 3.5 inch FTF Display Connectivity including USB Host & Device, LAN, and Digital IO Latest Build. NO HEATSINK ISSUES Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Rangkaian Elektrik 1, Rangkaian Elektrik 2, Elektronika, Sistem Digital Modul: Ada

Spesifikasi: Kuristron KPS3005 Features : - Constant voltage or constant current DC output - Voltage and current digital metering (0,1 V precision- A precision) - Coarse-fine adjusting - Curreent limit protection - Overheat protection - Unstable output protection Specification : - Input : 220VAC +/- 10% - Output Voltage : 0- 30V - Output Current : 0-5A Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: Tidak Ada

Spesifikasi: Flash Forge Creator Pro IDEX Dual-Extruder (Bisa Dua Warna dan bisa print dua objek berbarengan) Kerangka Besi Kontrol Layar LCD Print Technology : FDM Support Print Semua Material (ABS, PLA, PA, WOOD, PVA, Nylon,HIPS, TPE, PETG) Online / Offline (pakai memory card + LCD) Layer Resolution : 0.1 mm Layer Thickness : 0.1 - 0.5 mm Print Speed : up to 24 cc per hour AC Input : 240 V / 50-60 Hz / 350 W Certificate : RoHS/CE/FCC/ISO 9001 Print Volume : 200 x 148 x 150 mm Software : Flashprint Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: Tidak Ada

Spesifikasi: RIGOL DG830 RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 3 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highest frequency: 1.5 GHz / 3 GHz Amplitude accuracy: < 0.5 dB (typical) Output amplitude range: -110 dBm to +13 dBm High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) Standard 2 ppm internal clock; 5 ppb high stable clock for option Standard AM/FM/ΦM analog modulation Optional pulse modulation; on/off ratio up to 70 dB Pulse Train Generator (optional) All modulationschemes support internal and external modulation modes Standard 2U height design to save rack space. Rack mount kit is available Standard USB/LAN remote control interfaces. SCPI command set for remote control Wear-free electronic attenuator design Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: Ada

Spesifikasi: RIGOL DSA875 The DSA875 spectrum analyzer is a remarkable 7.5GHz RF tool that has made this product category affordable in a product with excellent performance. The DSA875 gives RF engineers immediate access to RF spectrum analysis on their benchtop. The widescreen LCD, compact design and intuitive operation provides a really useful and affordable tool for RF designers who need results for today’s frequencies up to 7.5GHz. Ideal for bench or field use, the DSA875 is employed around the world in many RF and wireless test and production areas. The DSA875 can measure even quite small signals by using a digital IF filter, small bandwidth settings reduce visible noise levels. The DSA875 distinguishes between signal inputs with a frequency difference as little as 100Hz. The DSA875 also adds useful standard capabilities, such as AM/FM demodulation, and a signal preamp. Other options are available, including an EMI filter and quasi-peak detector kit. When product compliance testing is on the horizon, first check your design with the DSA875 and the optional near-field probes shown below. The Rigol DSA875 will pay for itself quickly by avoiding a disappointing trip to the compliance lab! 9 kHz to 7.5 GHz Frequency Range Typical -161 dBm Displayed Average Noise Level (DANL) normalized to 1 Hz -98 dBc/Hz @10 kHz offset Phase Noise Total Amplitude Uncertainty <0.8 dB 10 Hz Minimum Resolution Bandwidth (RBW) Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: Ada

Spesifikasi: Lutron Tq-8800 Lutron TQ-8800 ( Made in Taiwan ) * Professional torque meter with 15 Kg-cm torque probe, full set. * 3 kind display unit : Kg-cm, Kg-cm, LB-inch and Newton-cm. * Peak value measurement. * Data hold. * Peak hold measurement . * High/Low resolution button. * Fast/Low sampling button. * Record Max. and Min. readings. * Separate torque probe, easy operation. * Auto shut off saves battery life. * Built-in low battery indicator. Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: Tidak Ada

Spesifikasi: Picoscope 2000 The PicoScope 2208B MSO from Pico Technology is a 100MHz 2-channel oscilloscope that also functions as a 16-channel logic analyzer, sampling at a maximum of 1GSa/s. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. Sampling at a maximum of 1GSa/s, the 2208B MSO has a buffer memory of 128Msamples and a sophisticated 1MHz AWG signal generator. 15 automatic measurements are available in scope mode and another 11 in spectrum mode. Serial decoding (normally an extra cost on benchtop scopes) is included free for SPI, I2C, FlexRay, CANbus, LINbus, ARINC, and others. The PicoScope 2208B MSO delivers amazing value, with excellent waveform visualization and measurement, as well as fast waveform update rates, giving the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots, at a very affordable price point. 100 MHz bandwidth 2+16 Channel Mixed-Signal Oscilloscope 2 Input Channels 3.5 ns Rise time (calculated) 1 GS/s Sampling rate 128 MS buffer memory Built-in arbitrary waveform generator USB-connected and powered Sumber Link: Quotation PT Jitrasindo Nama MK Praktikum: Tugas Akhir Modul: Tidak Ada
